SEALED ROTARY SWITCHES

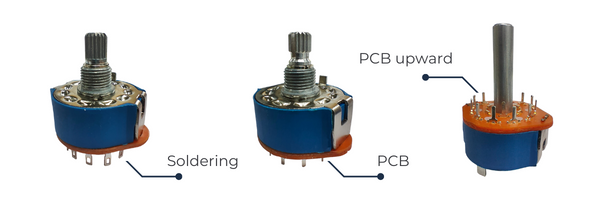

Rotary switches with sealed cover have highly improved the dustproof effect, which are now suitable for more applications, such as pro audio, industrial control, home appliance, etc. It is available for terminal types like soldering, PCB and PCB upward.

SPECIFICATIONS


Model	SR2511MF	SR2512MF	SR2513MF
Terminal Type
Rating	125V AC 0.3A
Withstand Voltage	500V AC - 1 minute
Contact Resistance	50 mΩ Max.
Insulation Resistance	500V DC - 100MΩ Min.
Rotational Torque	1.0 ± 0.5 kgf.cm
Life Cycle (without load)	10,000 cycles

APPLICATIONS

Visit our website to check the full catalog Taiwan Alpha, if you find any interest or have any further request, feel free to contact us sales@taiwanalpha.com
