Force Sensors

Home > Products > Membrane Sensors > Force Sensors



Thin and flexible, Alpha force-sensing resistors can detect the change of applied force and be used in pressure measurement in a variety of applications and wearable technology. Different shape and electrical output customization are available.



Force Sensors-FSR Type

Photo Model Active area Sensitivity Range Operating Temperature Life Cycles Catalog

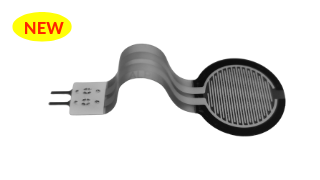

MF01A-□-A12 Ф14.7 mm 0.3N～39N -30°C to +60°C >5 million

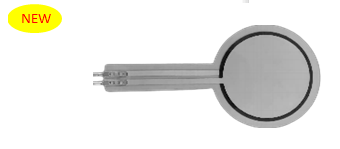

MP01A-□-A01 Ф14.7mm 10N～450N -30°C to +85°C >5 Million

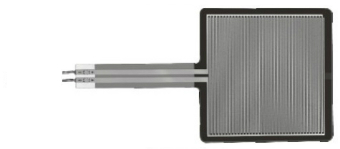

MF02A-□-A03 39.6mm x 39.6mm 0.98N~49N -30°C to +85°C >5 Million

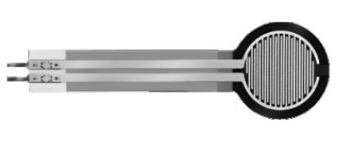

MF01A-□-A11 Ф14.7mm 3N~150N -30°C to +85°C >5 Million
MF01A-□-A01 Ф14.7mm 0.3N～9.8N -30°C to +85°C >5 Million
MF01A-□-A04 Ф10.2mm 0.1N～9.8N -30°C to +85°C >5 Million
MF01A-□-A05 Ф14.7mm 1N～98N -30°C to +85°C >5 Million
MF01A-□-A06 Ф14.7mm 0.3N～9.8N -30°C to +85°C >5 Million
MF01A-□-A08 Ф14.7mm 0.3N～9.8N -30°C to +85°C >5 Million

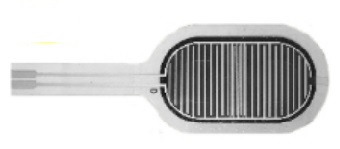

MF01A-□-A09 35mm x 19mm 0.3 bar～10 bar -30°C to +85°C >1 Million

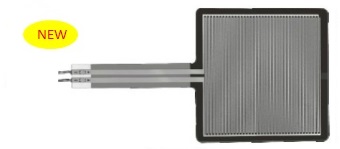

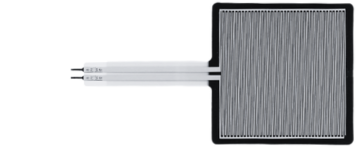

MF02A-□-A01 39.6mm x 39.6mm 0.3N～9.8N -30°C to +85°C >5 Million
MF22-□-A01 28mm x 28mm x 4 0.5N～9.8N -20°C to +70°C >1 Million

Seat occupancy monitoring

Inventory management

Emergemcy notification

Exercise and posture monitoring

Rehabilitation with virtual games

Bed monitoring system

Force Sensor

압력 센서 Force Sensor MF01-N-221-A09 (Korean)

Force Sensor MF01-N-221-A09 (English)

Pressure sensing pads for shoe insole
