Slide Potentiometers



Slide Potentiometers

Photo Model Series Terminal Type Number of Resistor Elements Travel (mm) Catalog
RA□□43F Low profile series Vertical Mono unit 15, 20, 25,
30, 45, 60
RA□□44F-201
RA□□44F-20
RA□□44F-20T
Low profile series Vertical Mono unit
Dual unit
With Tap unit
20, 25, 30, 45, 60
RA6046F-201
RA6046F-20
Low profile series Vertical Mono unit
Dual unit
60
RA2031F-20
RA3041F-20
Low profile series Vertical Mono unit 20, 30
RA2032F-20
RA3042F-20
Low profile series Vertical Dual unit 20, 30
RA2031F-202
RA3041F-202
Low profile series Vertical Mono unit 20, 30
RA□□21F-20 Low profile series Vertical Mono unit 15, 30, 45, 60
RA□□22F-20 Low profile series Vertical Dual unit 30, 45, 60
RA□□21F-202 Low profile series Vertical Mono unit 15, 30, 45, 60
RA□□22F-202 Low profile series Vertical Dual unit 15, 30, 45, 60
RA450CF Normal type series Vertical Mono unit 45
RA□□30F Normal type series Vertical Dual unit 45, 60
RA□□20F Normal type series Vertical Mono unit 45, 60
RA6040F Normal type series Horizontal Mono unit 60
RA0801F Micro miniature series Horizontal Mono unit 8
RA0802F Micro miniature series Horizontal Mono unit 8
RA0901F Micro miniature series Vertical Mono unit 9
RA1201F Micro miniature series Horizontal Mono unit 12
RA2040F Micro minature series Vertical Mono unit 20
RA1503F Micro minature series Vertical Mono unit 15
RA1010F Micro minature series Vertical Mono unit 10
RA□□45F Illuminated series Vertical Mono unit 20, 25, 30, 45
RA00B1F
RA00B2F
Low profile master series Vertical Mono unit
Dual unit
100
RA□□D1F
RA□□D2F
Dual rail series Vertical Mono unit
Dual unit
45, 60, 100
RA45D1LF
RA45D2LF
Dual rail with
long life series
Vertical Mono unit
Dual unit
45
RA□□Q1F
RA□□Q2F
Dual rail series Vertical Mono unit
Dual unit
45, 60
RA60K1F
RA60K2F
Dual rail series Vertical Mono unit
Dual unit
60
RA00B1MF
RA00B2MF

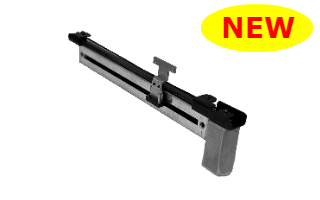

Motorized series Vertical Mono unit
Dual unit
100
RA00B1MLF
RA00B2MLF
Motorized with
long life series
Vertical Mono unit
Dual unit
100
