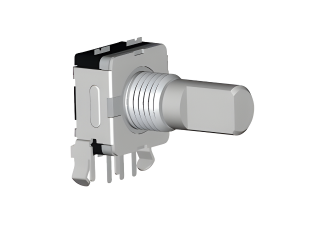

Product Announcement: Encoder RE111WF
|
Alpha is pleased to introduce the enhanced version of the RE111F — RE111WF.
The RE111WF offers significantly enhanced rotational durability, making it suitable for a broader range of applications. It also offers additional size and specification options, giving customers greater flexibility in design.
If you have any product inquiries or need technical support, please feel free to contact us: sales@taiwanalpha.com
|
 |
Specifications
| Model |
RE111F |
RE111WF |
| Rotation Angle |
360° endless |
| Rating Voltage |
5V DC 10mA (I mA Min.) |
| Operating Temperature Range |
-10 °C~70 °C |
| Rotational Torque |
30 ~ 200 gf.cm |
| Rotational Life (Rotate 360° ccw and rotate 360° cw as 1 cycle) |
15,000 cycles |
30,000 cycles |
| Switch Circuit |
S.P.S.T. (Push on) |
| Switch Stroke |
0.5 mm |
| Switch Rating |
16V DC 3A (10mA Min.) |
| Switch Operating Force |
600 ± 300 gf.cm |
| Switch Operating Life |
25,000 cycles |
More Information：
👉 Encoder product page：https://www.taiwanalpha.com/en/products/12
Best Regards,
Taiwan Alpha
|
